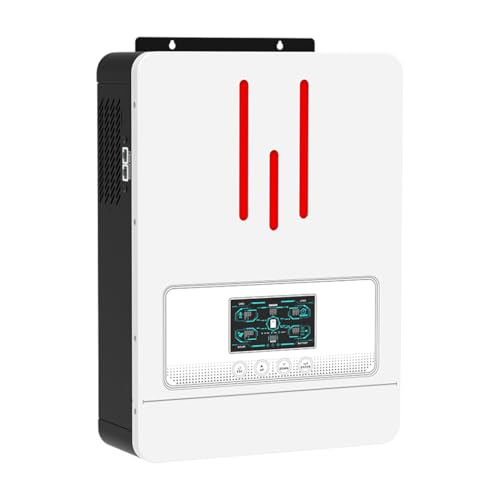

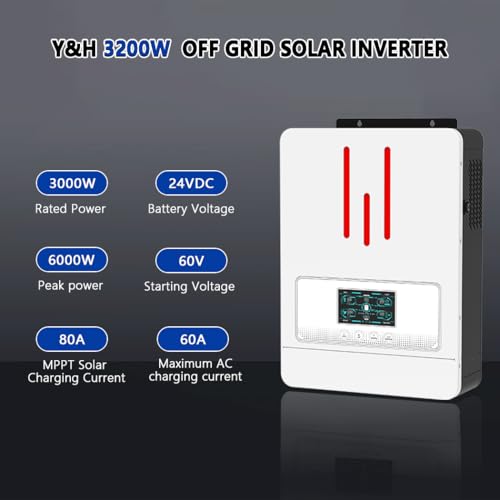

Y&H 3200W Hybrid Solar Inverter DC24V to AC230V, Supports Battery-Free Operation, with 80A MPPT Solar Charger, Pure Sine Wave Off-Grid, LiFePO4 BMS-RS485, 4ms UPS Transfer, RV & Home Zero-Bill Backup - size: 3200W-24V-M80A

Y&H 3200W Hybrid Solar Inverter DC24V to AC230V, Supports Battery-Free Operation, with 80A MPPT Solar Charger, Pure Sine Wave Off-Grid, LiFePO4 BMS-RS485, 4ms UPS Transfer, RV & Home Zero-Bill Backup - size: 3200W-24V-M80A

$361.86 USD
$361.86 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

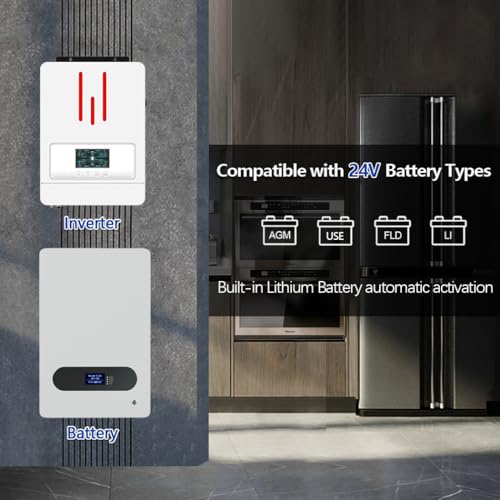

  • 3200W Pure sine Wave Inverter 24V DC to AC 220/230/240V (Single phase/A Hot Leg 230V Output, Can't Output 110V AC), built in 80A Mppt charge controller, is a new all-in-one hybrid solar inverter charger, fit for 24V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery

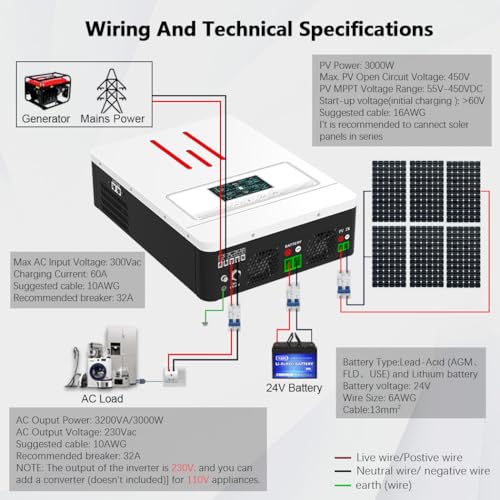

  • 3200VA Hybrid Solar Inverter Max.PV Input Power: 3000W, Voltage range: 55-450Vdc, Max. PV Input VOC: 450V DC, Starting voltage >60V;Recommended PV cable size: 16AWG, Max.charge current: 80A.Nominal Input Frequency: 50/60Hz; Output Power: 3000W, surge Capacity: 6000W.

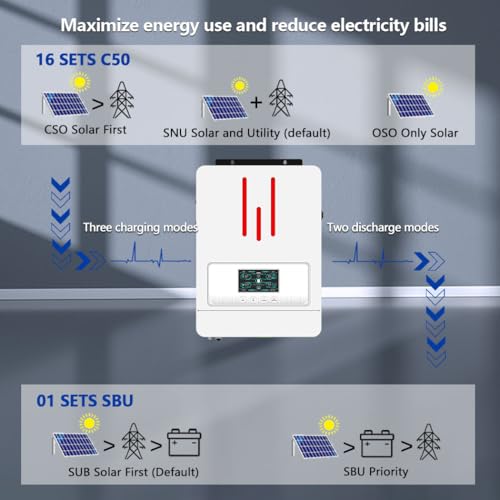

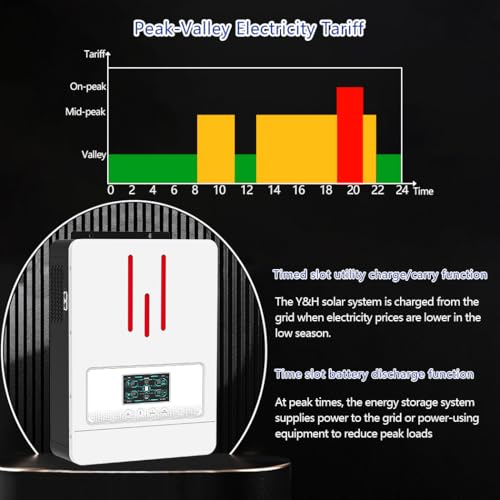

  • Off Grid Solar Inverter have 3 charging modes are optional, i.e. Only Solar, Solar Frist and Mains & Solar hybrid charging;and 2 output modes are available, i.e. Solar Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.

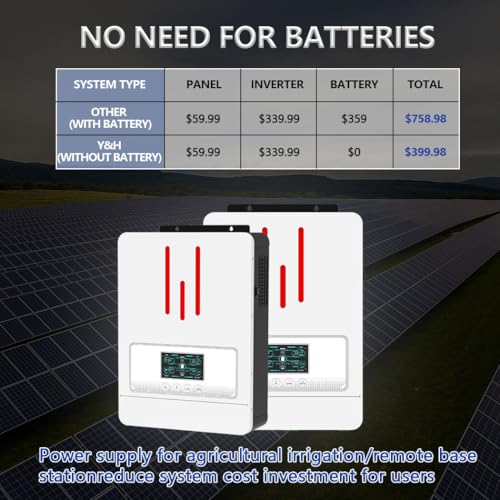

  • Battery-less startup design significantly reduces system purchase cost. Battery installation, maintenance and replacement costs are eliminated. Direct utilization of photovoltaic power, suitable for daytime high energy consumption scenarios, especially in areas where solar energy resources are abundant and demand for electricity is concentrated in the daytime (it is recommended to match the grid input, which automatically switches to utility power to supplement when there is insufficient photovoltaic power generation)

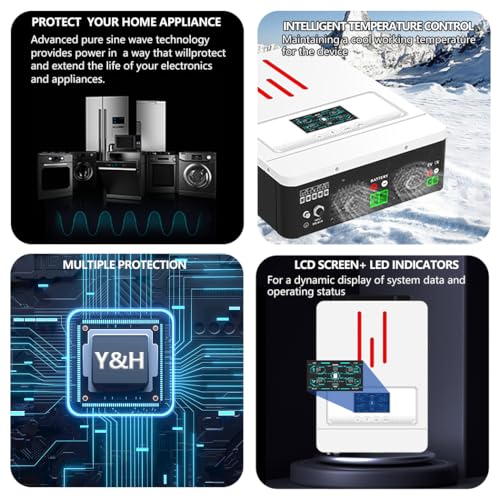

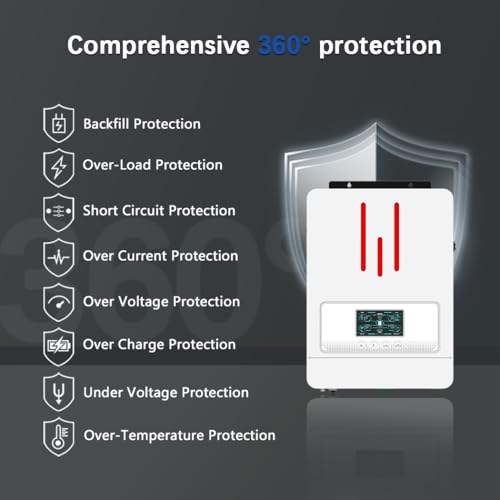

  • The inverter can access key battery information (e.g. voltage, current, temperature, SOC, SOH) provided by the BMS. This helps avoid dangerous situations such as overcharging, overdischarging, overcurrent and overheating. When the BMS detects an abnormality (e.g., high battery temperature), it can send a signal to the inverter to trigger the system protection mechanism to quickly stop charging and discharging and prevent the fault from expanding.（BMS only compatible with PYLON/PACE）
  • 【Not for 120V】The inverter is only suitable for single-phase 230V voltage and not compatible with 110V split-phase voltage! If your load is 110V, it is not suitable. Please be aware that it can only supply power to 240V loads，For 110/120V US home appliance equipment, you can simply add a converter (not included) to step down the 220/240V AC power to 110/120V AC power. then your 110V home appliances can also be used at the same time.

Overview

  • Brand: Y&H
  • Recommended Uses For Product: Home
  • Power Source: Solar Powered
  • Wattage: 3000
  • Model Name: RS
