Idler Pulley Belt Kit 131-4509 120-3335 for Toro TimeMaster 30" - size: 131-4529

Idler Pulley Belt Kit 131-4509 120-3335 for Toro TimeMaster 30" - size: 131-4529

$43.14 USD
$43.14 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

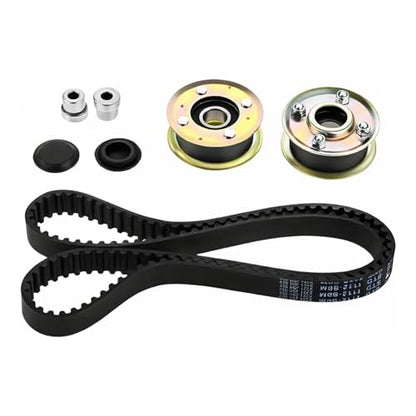

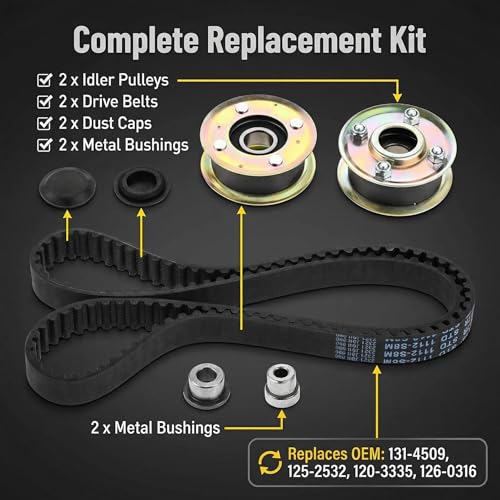

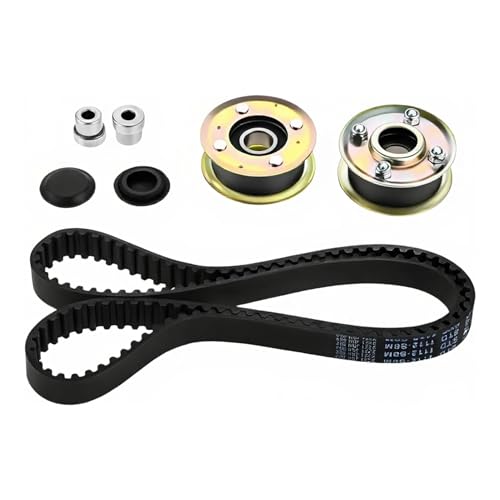

  • Idler Pulley + 44″ Cogged Belt Combo — Replaces 131-4509 / 131-4529 / 120-3335 Aftermarket deck idler pulley & synchronous belt combo​ to Toro Genuine 131-4509 (pulley) and 120-3335 (belt). Replaces Toro 131-4509, 1314529, 131-4529 (kit no.), 125-2532, 121-5763, 126-0316, 131-4506, 120-3335 / 1203335, cross Stens 265-610, aftermarket-ref ProvenPart PP1314529, CarpowerEngine 131-4529/131-4509, HRepair 1314529-125-2532. Pulley spec: steel wheel + double-sealed bearing, 2-3/4″L × 1″H, 1.4″ OD, 0.7″ bore, PVC dust cap; Belt: 44″ × 3/4″ cogged synchronous (140-tooth), chloroprene rubber. Match old pulley stamp 131-4509​ and belt tag 120-3335​ before order.

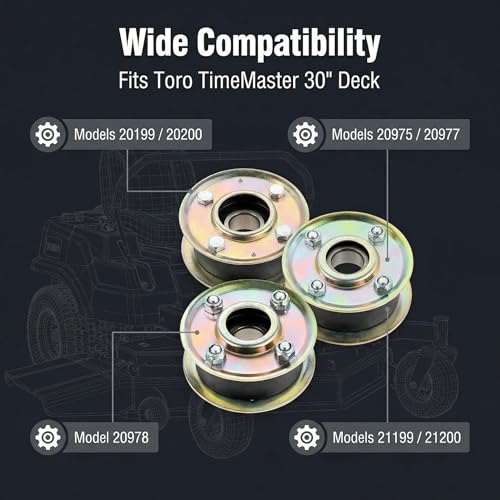

  • For Toro TimeMaster 30″ / TurfMaster 30″ (20199 / 20975 / 22200 etc.) Engineered for TimeMaster 30″ 20199/20200/21199/21199HD/21200, TimeMaster 76cm 20975/20976/20977/20978/21810/21811, TurfMaster 30″ 22200/22210/22215/22225, TurfMaster 76cm 22205TE/22207, Exmark ECS180 CKA30000 / ECKA30​ (TurfMaster badge).

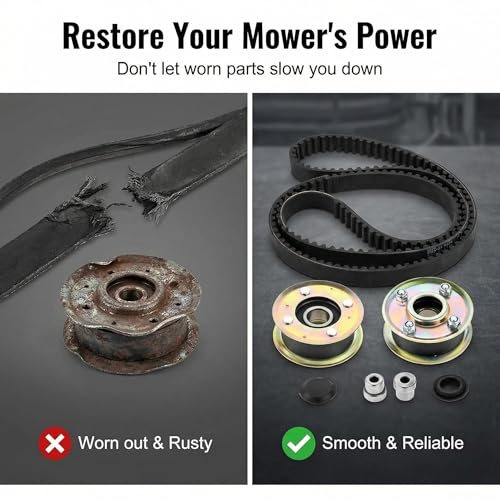

  • Fixes Belt Squeal, Jump-Off, Twin-Blade Speed Mismatch & Uneven Cut Resolves 30″ deck faults: belt screams at engagement, belt walks off rear idler, two blades spin at different RPM (timing slips), idler bearing rattles, scalp line wanders because tension droops. Worn 1.4″ idler changes belt wrap; stretched belt changes tooth mesh on the cog drive — replacing pulley + belt together​ (not belt alone) restores correct twin-blade timing. Test old: spin idler, any side play >1mm or gritty rumble = replace; belt teeth polished shiny = combo job.
  • Bolt to Rear Idler Bracket, Route 44″ Cog Belt, Torque to Manual Disconnect spark plug lead first, tip deck, photo belt path, relieve tension, remove 2 idler bolts, lift old pulleys + spacers, seat new pulleys with supplied washers in same stack order, hand-start, torque shoulder bolts to Toro manual (~40 N·m), loop 120-3335 cogged belt​ in original tooth orientation (don't flip inside-out), check rear idler alignment with straightedge against spindle pulleys, reconnect plug. Critical:​ this combo is 30″ TimeMaster/TurfMaster dual-blade cog-drive layout
  • Confirm 131-4509 Stamp + 120-3335 44×3/4 + Toro 30″ Dual-Blade This combo has steel idler (1.4″ OD, 0.7″ bore, 131-4509 stamp) + 44″×3/4″ cogged belt (120-3335 stamp), and fits Toro TimeMaster 30″ / TurfMaster 30″ only. Before ordering, photo old parts and confirm (1) pulley 131-4509 or 131-4529, belt 120-3335 44×3/4 cogged, (2) Toro 30″ walk-behind dual-blade (not 21″, not Z-Master), (3) steel pulley not plastic. 21″ Toro, John Deere 30″, Cub Cadet 30″ and zero-turns use different combos and are not covered.

Overview

  • Brand: LINGYAO

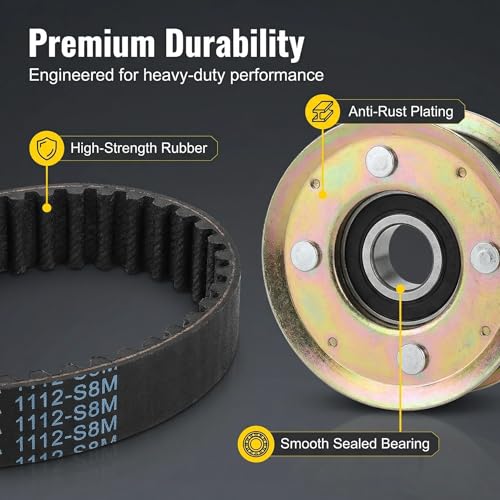

  • Material: Steel pulley wheel, double-sealed bearing, PVC dust cap; chloroprene cogged belt
  • Compatible Devices: Toro TimeMaster 30″ / TurfMaster 30″ walk-behind dual-blade, 2013+; Exmark ECS180/ECKA30
  • Item Weight: 1.3 pounds
  • Color: black
