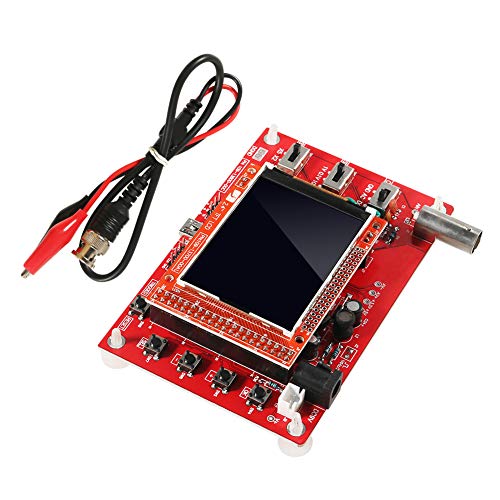

DSO 138 Oscilloscope Kit Open Source with Probe 2.4" TFT 1Msps Digital Oscilloscope Kit with DSO 138 Case + Probe 13803K for Electronic Learning Set

DSO 138 Oscilloscope Kit Open Source with Probe 2.4" TFT 1Msps Digital Oscilloscope Kit with DSO 138 Case + Probe 13803K for Electronic Learning Set

$43.14 USD
$43.14 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

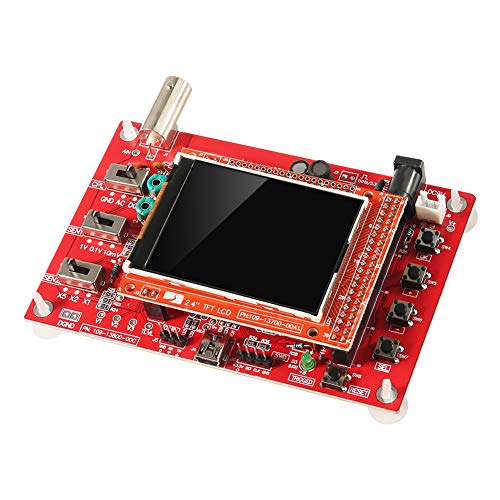

  • This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.Can freeze at any time waveform display (HOLD function).Comes 1Hz /3.3V square wave test signal source.
  • With automatic, regular and one-shot modes, easy to capture the moment waveform.Available rising or falling edge trigger.Observable previous trigger waveform (negative delay).

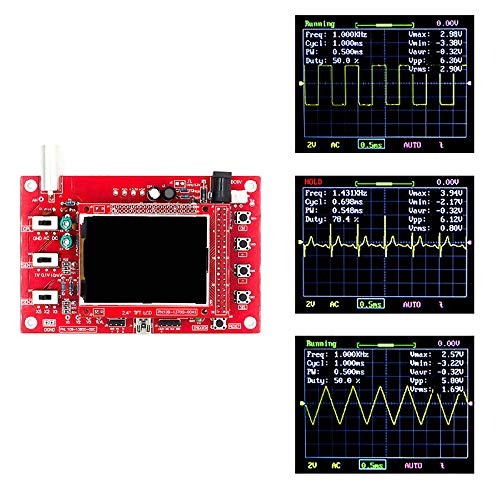

  • With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.Waveform storage function: will not lose the waveform after power off.

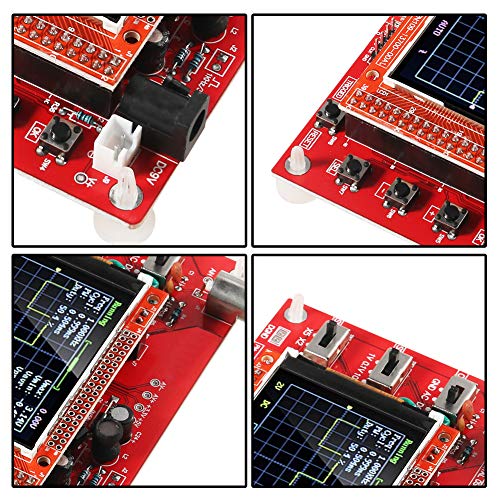

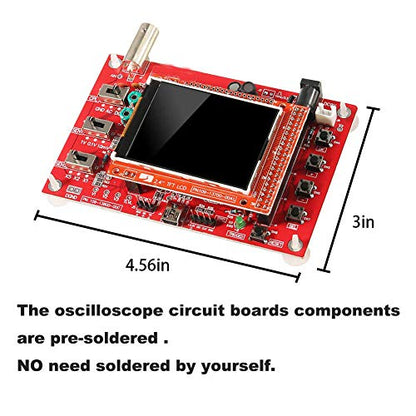

  • Partially open-sourced,the MCU has been programmed.The oscilloscope circuit boards components are pre-soldered, no need soldered by yourself.The case is unassembled and requires assembly.
  • Adjustable vertical displacement,and with instructions,which increase the likelihood of adding different features or developing new applications on the hardware for users.

Low stock: 10 left
