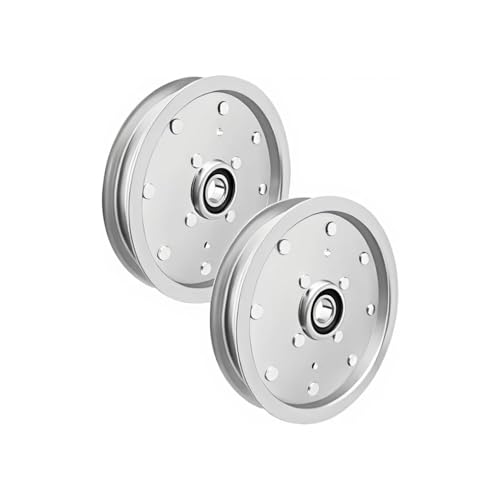

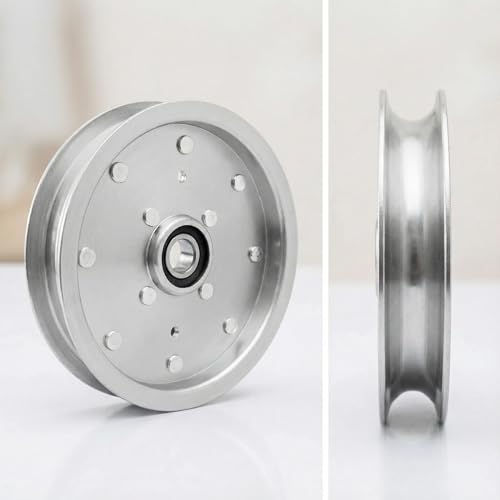

Deck Flat Idler Pulley AUC10172 6-3/16in for John Deere ZTrak - size: AUC10172

Deck Flat Idler Pulley AUC10172 6-3/16in for John Deere ZTrak - size: AUC10172

$66.38 USD
$66.38 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

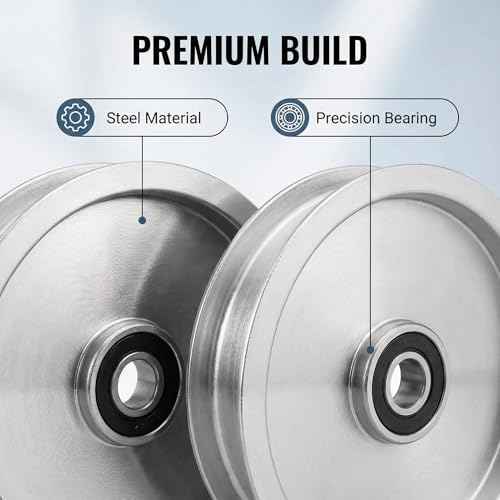

  • 6-3/16″ Flat Deck Idler — Replaces AUC10172 / GY22355 / Oregon 78-168 Direct aftermarket single-groove flat idler pulley​ to John Deere Genuine AUC10172. Replaces JD AUC10172, GY22355 (JD official substitute), cross 15959, Caltric 280-807, GA Spares PUL8585, Oregon 78-168, Blademower 810-CID2355L. Specs: total OD 6-3/16″ (157.2mm), flat rim OD 5-1/2″ (139.7mm), groove width 7/8″ (22.2mm), overall width 1-1/8″ (28.6mm), bore 11/16″ (17mm) round, rim offset 5/16″, DC01 cold-rolled steel wheel + double-sealed 6203-class bearing, ~1.56lb. Match old pulley stamp AUC10172​ and bore 11/16″ before order.

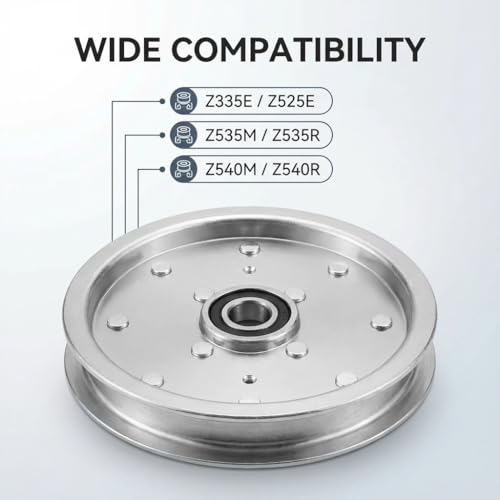

  • For John Deere ZTrak Z335E–Z540R + S240 (42A/48A/54A/60A Accel Deep) Engineered for S240 (48″ Accel Deep), Z315E/Z320M/Z335E/Z345M (42A), Z355E/Z515E/Z525E/Z530M/Z535M/Z540M/Z540R (48A/48HC), Z325E/Z375R/Z530R/Z535R/Z545R (54A/54HC), Z515E/Z535M/Z540M/Z540R/Z545R (60A/62C), mid-duty Z720E/Z730M/Z735M/Z740R/Z760R.
  • Fixes Belt Squeal, Jump-Off & Wandering Cut Line Resolves idler faults: belt screams at engagement, belt walks off the spindle stack, idler wobbles on its bolt (bearing loose), sandy rattle from seized bearing, uneven scalped cut because tension wanders. Worn flat idler changes belt wrap angle and lets the deck belt slip under load — new sealed-bearing steel pulley restores correct tension geometry. Test old: spin by hand, any gritty rumble or side play >1mm = replace; belt off-track twice = idler job, not belt-only.

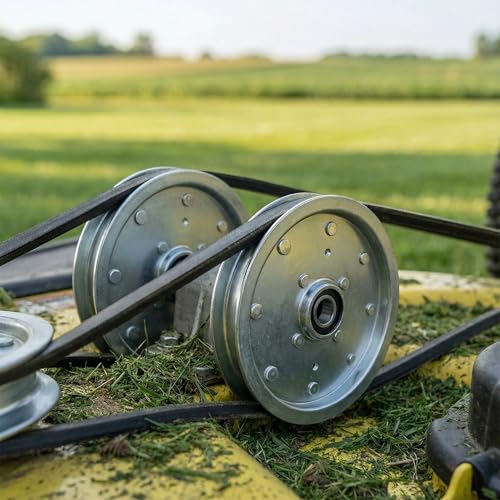

  • Bolt to Deck Bracket, Reuse JD Shoulder Bolt, Torque to Manual Kill PTO, lower deck, disconnect spark plug, photo belt routing, loosen idler mounting bolt, lift old pulley off bracket (note any spacer/washer stack), seat new pulley on same bolt with spacers in original order, hand-start, torque shoulder bolt to John Deere manual (~35 N·m for ZTrak class), reroute belt, check idler alignment with straightedge against spindle pulleys, restart. Critical:​ this is a 6-3/16″ flat idler with 11/16″ bore for ZTrak Accel Deep / Edge HC decks​.

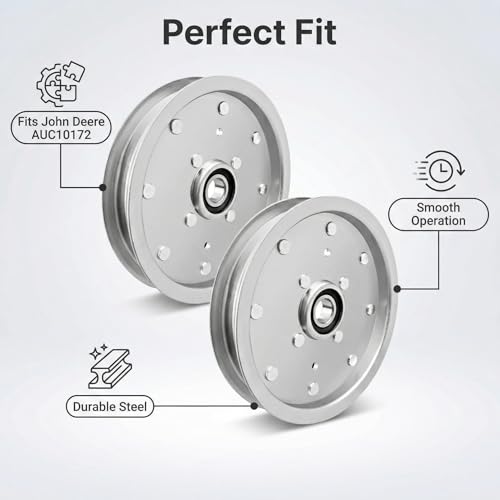

  • Confirm AUC10172 Stamp + 11/16″ Bore + JD ZTrak Deck This pulley has DC01 steel rim, sealed bearing, 6-3/16″ total OD, 11/16″ round bore, AUC10172 stamp, and fits John Deere ZTrak Z-series + S240 on 42A/48A/54A/60A Accel Deep and Edge HC decks. Before ordering, photo old pulley label and confirm (1) AUC10172 or GY22355 stamp, (2) 11/16″ bore (not 5/8″ or 3/4″), (3) JD ZTrak/S240 (not X300/X500, not S100/S140, not non-JD). X300-family, S100-family and Toro/Exmark use different idler numbers and are not covered.

Low stock: 10 left
