40 Sqft Electric Radiant Floor Heating Cable Kit – 120V Heated Tile Floor System with UWG5 Programmable Thermostat, Sensor, Installation Monitor & 25 Year Warranty, Made in the USA - size: 40 Sqft

40 Sqft Electric Radiant Floor Heating Cable Kit – 120V Heated Tile Floor System with UWG5 Programmable Thermostat, Sensor, Installation Monitor & 25 Year Warranty, Made in the USA - size: 40 Sqft

$496.34 USD
$496.34 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

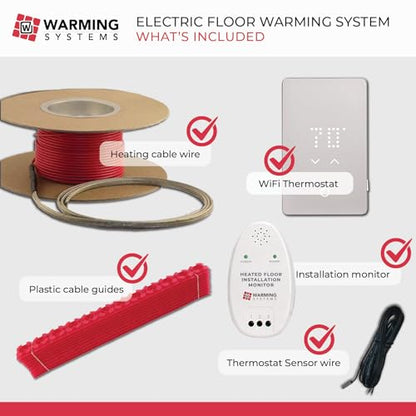

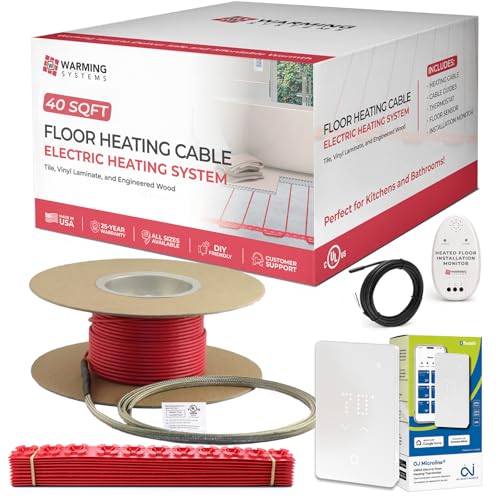

  • COMPLETE ELECTRIC RADIANT FLOOR HEATING KIT – Includes 40 sq ft heating cable (160 ft) with installation cable guides, UWG5-4999 programmable touch thermostat with floor temperature sensor, and installation warning monitor that alerts if the cable is damaged during installation. Ideal for bathroom floor heating and warming cold tile floors.
  • HEATING CABLE SPECIFICATIONS – 160 linear feet of electric heating cable designed to warm 40 sq ft using efficient radiant floor heat (120V, 480W, 12W per sq ft). UL listed for the USA and Canada and approved for wet areas, making it ideal for bathroom floor heating. Ultra-thin 1/8"cableinstallseasilyundertilestoneorporcelainwithoutraisingfloorheight.

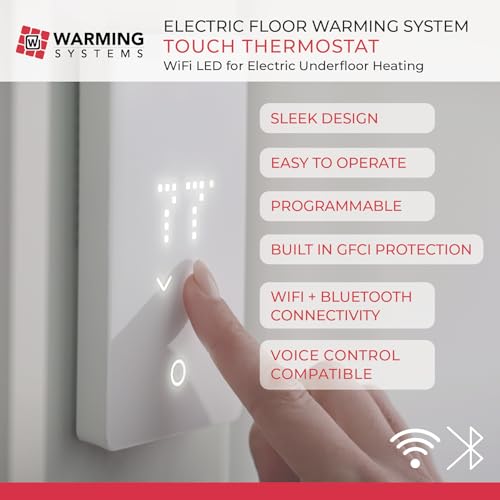

  • SMART PROGRAMMABLE FLOOR HEATING THERMOSTAT – Includes UWG5-4999 touch thermostat with WiFi and Bluetooth connectivity for convenient control of your radiant floor heating system. Voice control compatible and equipped with built-in GFCI protection for safety. The included floor sensor allows precise temperature regulation for warm, comfortable floors while helping reduce energy use.

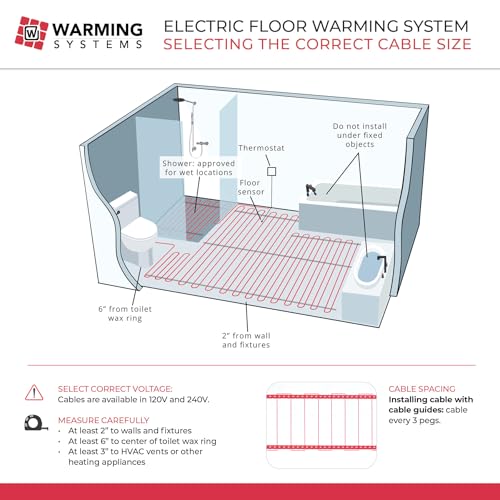

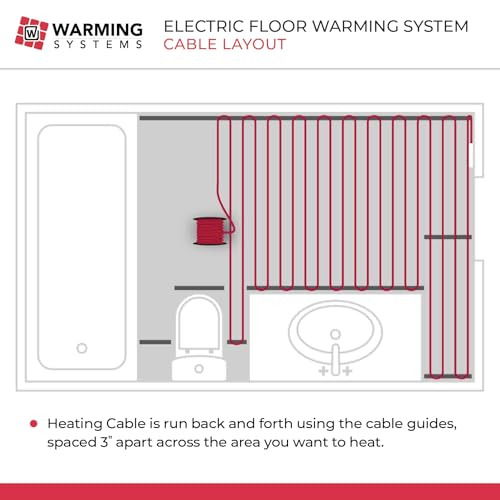

  • FLEXIBLE CABLE DESIGN FOR ANY FLOOR SHAPE – The electric heating cable comes on a spool and installs easily using the included cable guides spaced about 3" apart. This flexible layout allows installers to run the cable back and forth to heat rooms with angles, curves, and custom layouts—ideal for bathroom floor heating, kitchens, and other tiled spaces.
  • USA MADE QUALITY & FACTORY DIRECT SUPPORT – Warming Systems radiant floor heating products are proudly manufactured in the USA at our facility in Spring Grove, Illinois. We use high-quality components and back every system with a 25-year warranty. Our experienced team provides expert engineering and installation support to ensure your heated floor project is a success.

Low stock: 10 left

View full details
